- Size: 1
- Place of Origin: SHAN DONG
- Brand Name: SINOTRUK

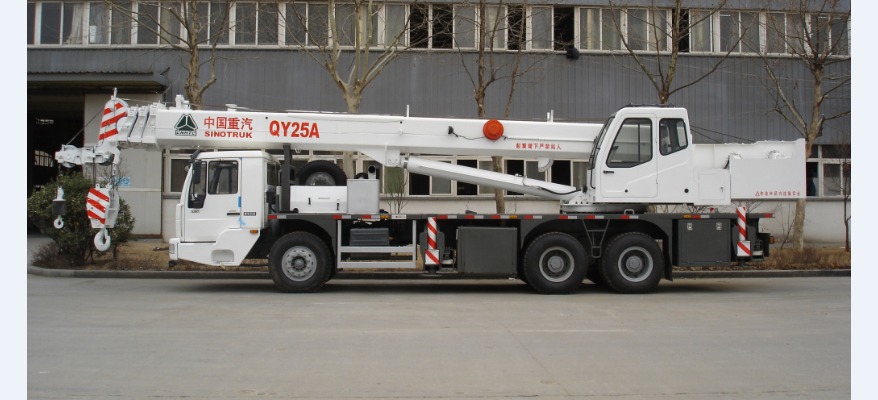

- Model Number: QY25A
- Weight: 1.000 kg

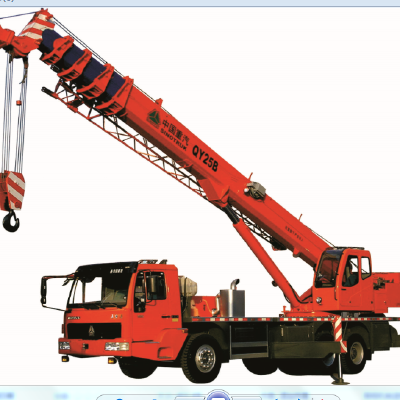

QY25B主要技术参数 MAIN TECHNICAL SPECIFICATIONS | ||||
项目(ITEM) | 单位（UNIT） | 数值(DATA) | ||
工作性能参数 WORKING PERFORMANCE SPECIFICATIONS | 最大额定起重量 | Max rated lifting capacity | t | 25 |
基本臂最大起重力矩 | Max lifting moment with min boom length | kN·m | 961 | |
最长主臂最大起重力矩 | Max lifting moment with max boom length | kN·m | 379 | |
主臂最大起升高度 | Boom max lifting height | m | 39 | |
副臂最大起升高度 | Jib max lifting height | m | 47 | |
质量参数 MASS SPECIFICATIONS | 总重 | Gross weight | kg | 32450 |
前轴轴荷 | Front axle load | kg | 7000 | |
后轴轴荷 | Rear axle load | kg | 25450 | |
工作速度 WORKING SPEED | 単绳最大速度 | Single line max speed | m/min | 130 |
起重臂伸出时间 | Lifting boom extending time | S | 90 | |
起重臂起臂时间 | Lifting boom elevating time | s | 70 | |
回转速度 | Slewing speed | r/min | ≤2 | |
行驶参数 TRAVELLING SPECIFICATIONS | 最高行驶速度 | Max travelling speed | km/h | 75 |
最大爬坡度 | Max gradeability | (%) | 28 | |
最小转弯半径 | Min turning radius | m | 11.5 | |
最小离地间隙 | Min clearance | mm | 260 | |
接近角 | Approach angle | ° | 16 | |
离去角 | Angle of departure | ° | 11 | |
尺寸参数 DIMENSION SPECIFICATIONS | 外形尺寸（长X宽X高） | Overall dimensions(L×W×H) | mm | 12800×2500×3500 |
支腿纵向跨距 | Outrigger longitudinal span | mm | 5330 | |
支腿横向跨距 | Outrigger Transversal Span | mm | 6100 | |
主臂长 | Boom length | m | 10.5-38.9 | |
副臂长 | Jib length | m | 8.15 | |
底盘 CHASSIS | 型号 | Type | TAZ5323JB | |
发动机型号 | Diesel model | WD615.92 | ||
发动机功率 | Max power of engine | kw/rpm | 196/2200 | |
最大扭矩 | Max torque of engine | N·m/rpm | 1100/1100-1600 | |
