- Size: 57M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3317N3867N1
- Weight: 9000.000 kg

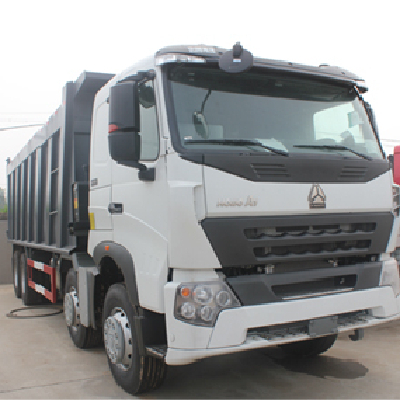

1, Howo A7 tippers: Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2, Howo concrete mixers: Howo 6x4 mixer; Howo 8x4 mixer. including7m3,8m3,9m3,10m3,11m3 and 12m3,
3,Howo tracotrs: Howo 4x2 tractor; Howo 6x4 tractor
Engine power for the above heavy duty trucks is 266HP,290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia,Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.
- Size: 57M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3317N3867N1
- Weight: 9000.000 kg
Typical vehicle model ZZ3257N3647N1 CABIN A7-W standard cabin, ENGINE: MODEL CNHTC D12.34 Rated power 249kw/2000rpm Max. torque 1490Nm/ 1200-1500rpm Displacement 9.726L Type Inline 6 cylinder, supercharged intercooling, central supercharger, electronic high pressure and common rail Clutch 430 diaphragm spring clutch, hydraulic control air power assisted. Transmission SINOTRUK HW15710 10 speeds transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. Steering system German ZF Power assistant steering system Front axle HF9 Rated load 9Ton, disc-type or drum type Rear axle AC16 Suspension Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer , rear suspension is disconnected type with transverse stabilizer Brake system: Service brake: dual-circuit air pressure brake; Electric system: CAN bus control, voltage: 24V, generator: 2240w; starter: 7.5kw; battery: 12V/165Ah; 2 pieces Tyre: 12.00R20 Kerb weight 12270kg Vehicle overall dimension 8265x2496x3490mm Carriage internal dimension 5400x2300x1200mm (1300mm, 1400mm, 1500mm ) Lifting way Middle lift or front lift Steel thickness of carriage Floor 8mm x side 4mm Wheel base 3625 1350mm color White, red, gray, yellow, blue, green Fuel tanker capacity 300L
Four-point full floating air suspension shock absorber transverse stabilizer, single berth, air suspension driver’s seat, up/down and front/back adjustable steering wheel, BEHR European style new integral A/C heater, VDO instrument, CAN bus and electrics control system, safety belt with double locking mechanism, power window and rearview mirror, three locks combined in one, exterior sun visor, top wind deflector side air deflector, electronic hand throttle.
Parking brake: energy storage spring air cutoff brake
Auxiliary brake: EVB engine extinguish exhaust brake,
