- Size: 57M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3317N3867N1
- Weight: 9000.000 kg

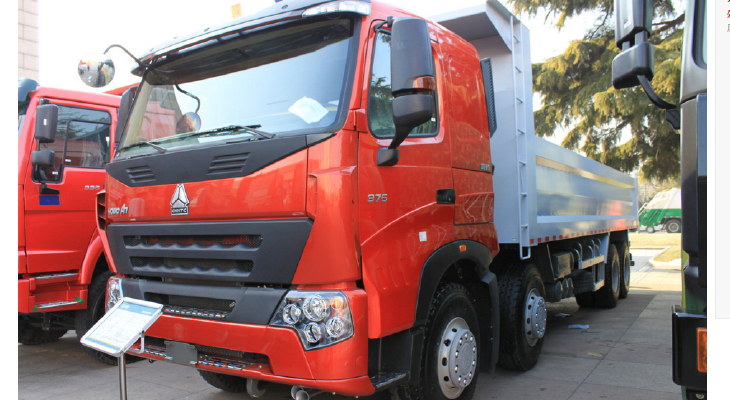

1, Howo A7 tippers: Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2, Howo concrete mixers: Howo 6x4 mixer; Howo 8x4 mixer. including7m3,8m3,9m3,10m3,11m3 and 12m3,
3,Howo tracotrs: Howo 4x2 tractor; Howo 6x4 tractor
Engine power for the above heavy duty trucks is 266HP,290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia,Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.
- Size: 57M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3317N3867N1
- Weight: 9000.000 kg
Typical vehicle model | ZZ3257N3647N1 | |
CABIN | A7-W standard cabin, | |
ENGINE: | MODEL | CNHTC D12.34 |
Rated power | 249kw/2000rpm | |
Max. torque | 1490Nm/ 1200-1500rpm | |
Displacement | 9.726L | |
Type | Inline 6 cylinder, supercharged intercooling, central supercharger, electronic high pressure and common rail | |
Clutch | 430 diaphragm spring clutch, hydraulic control air power assisted. | |
Transmission | SINOTRUK HW15710 10 speeds transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. | |
Steering system | German ZF Power assistant steering system | |
Front axle | HF9 Rated load 9Ton, disc-type or drum type | |
Rear axle | AC16 | |
Suspension | Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer , rear suspension is disconnected type with transverse stabilizer | |
Brake system: | Service brake: dual-circuit air pressure brake; | |
Electric system: | CAN bus control, voltage: 24V, generator: 2240w; starter: 7.5kw; battery: 12V/165Ah; 2 pieces | |
Tyre: | 12.00R20 | |
Kerb weight | 12270kg | |
Vehicle overall dimension | 8265x2496x3490mm | |
Carriage internal dimension | 5400x2300x1200mm (1300mm, 1400mm, 1500mm ) | |
Lifting way | Middle lift or front lift | |
Steel thickness of carriage | Floor 8mm x side 4mm | |
Wheel base | 3625 1350mm | |
color | White, red, gray, yellow, blue, green | |
Fuel tanker capacity | 300L | |
