- Size: 0M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: QYJ-36
- Weight: 36000.000 kg

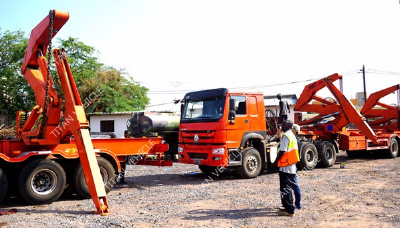

Transportation Advantages of QYJ-36 SIDElOADER
The semi trailer is used for lifting and carrying two 20ft containers or one 40ft container in port, station and freight yard, the trailer’s hydraulic system power is from PTO in tractor truck, it can be operated both wireless remote control and manual operation. D imensions and lifting capacities are made under request. Lifting capacity of the cranes 16 ton or 36 ton Semi-trailer: Straight or Gooseneck 20′ and 40′′ 3 axles, Single or double tire, Adopting imported electromagnetic valve. Two speed operation Double pumps and dual circuit hydraulic system Adopting intelligent safety protection system.
1.This vehicle has the ability of loading, unloading and transportation of containers,
efficient and reliable;
2.The main supporting assembly choose domestic well-known brand, quality reliable
and safe operation;
3.Semi-trailer frame longitudinal beams adopt high profile and variable cross-section
design,and crane structure is made of high strength steel plate by welding. After the
stress test ,the vehicle can meet the requirements of bearing;
4.Crane can slip front and back to adapt to the loading ,unloading and transportation
of the 20 feet and 40 feet standard container ;
5.Lifting operation adopting a wireless remote control system, equipped with imported
remote-controller, easy operation, reliable micro-motion;
6 .Manual emergency operation mode and safety insurance reserved;
7.The crane is equipped with imported electromagnetic proportional valve, the control
precision;
8.Two-speed operation for no-load overloading working condition ;
9.The crane adopts double pump hydraulic system of double circuit, and will not be
affected by slanting load with reliable operation.
10. Lifting operation using intelligent security protection system, dangerous operations
will be locked intelligently.
11. The vehicle safety control system, the installation of one key flameout switch;
12. Crane equipped with imported centralized lubrication system, electric control is easy
to operate;
item | unit | details |
length | mm | 13900 |
width | mm | 2500 |
height | mm | 3990 |
max lifting capacity | Kg | 36000 |
working pressure | MPa | 25 |
crane weight dead weight | Kg kg | 7000 14510 |
container size | Feet | 20 , 40 |
Axle | PCS | 3×13T FUWA |
Tyre | PCS | 12* 11.00R20 |
Rim | PCS | 12* 8.00×20 |
Landing gear | PAIR | 1* JOST C200 |
Kingpin 3.5 | PCS | 1* JOST 90# |
Container Twist lock | PCS | 12 |
Leaf spring | PCS | 16 Thickness*90Width *8 Pieces |
Frame |
| Q345 |
Main beams | 2 | I BEAM 500x140 ， Top flange plate14 ， bottom flange plate 14, web plate 8 ， Q345 steel plate |
PLC |
| Both English and Chinese |
Electric System |
| 24v,7- core socket |
Volume:140CB M
