- Size: 0M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ1317N4667W
- Weight: 36000.000 kg
Description：
Model: ZZ 1317N466 7 W/SOWA
Net Weight: 18,68 0KG
Loading Capacity: 36,000.00KGS
Overall Dimension :
11 , 700 mm (Length) x 2, 800 mm ( Width) x 3 ,73 0 mm ( Height)
Driving type: 8X4 L HD
Cab: HOWO HW76 ,
Engine: 371 HP Euro 2 47
Transmission: HW1971 0,
Front axle: H F9
Rear axle: HC16
Ra t io: 4.63
Steering: ZF 8098
Tire: 12.00R20
Color: faint yellow ( )
Other unmentioned, shall be conformity with manufacturer standards.

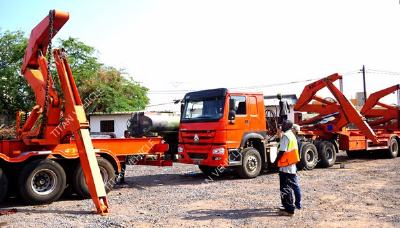

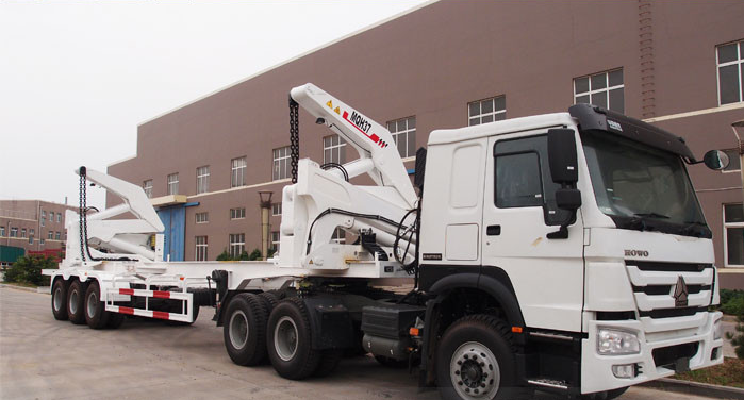

Crane : 3 6 T
The suitable of container specifications : 20ft Standard container
Maximum lifting weight : 36000kg
R ated working pressure : 25Mpa
M ention :
Two model for the lifting:
1. 2.1M between the landing leg and the middle of chassis, the r ated lifting weight is 16000kg
2. 3.5M between the landing leg and the middle of chassis, the r ated lifting weight is 36000kg
