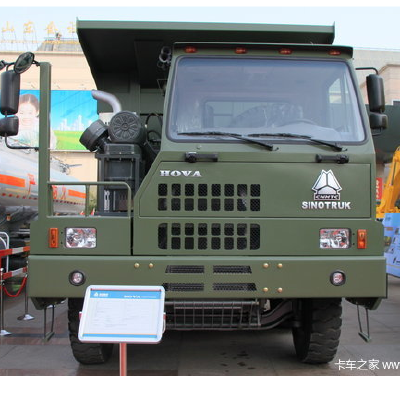

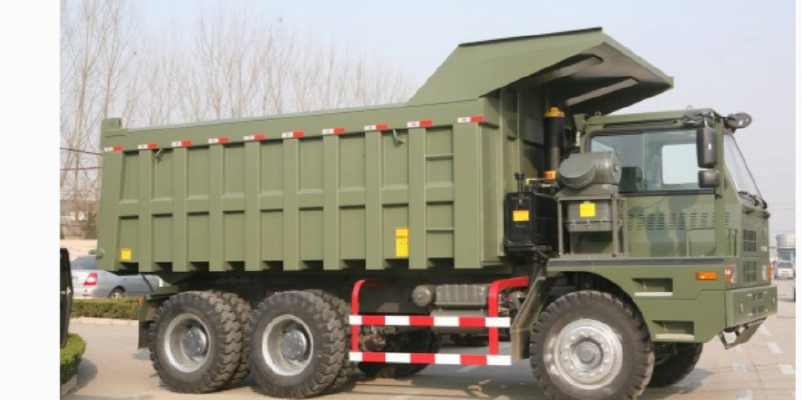

sinotruck HOWO 50T Mining Tipper Truck

sinotruck HOWO 50T Mining Tipper Truck

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Any China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1994-12-29
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  62M3
  • Place of Origin:  China
  • Brand Name:  SINOTRUK
  • Model Number:  ZZ
  • Weight: 9000.000 kg



Model

ZZ5504N3640AJ

Dimension

8060x3000x3425mm

Dimension of box

5400x2800x1500mm(rectangular carrier)

Wheel base

3600mm 1400mm

Front/rear overhang

1500/1560mm

Front/rear track

2400/2200mm

Min. Ground clearance

305mm

Dead weight

15560kg

G.V.W

50000kg

Axle loading capacity

9650/40350kg

Cabin

HOVA CABIN, Dual hydraulic locks,hydraulically                  52°tilting to the front

Engine:

Model

WD 615.69

Power

247kw/2200rpm

Max. torque

1350Nm/1100~1600rpm

Air intake

Three air filtering, whirlwind pre-filtering, oil bath                  and air filtering

Clutch

FG420J Spiral spring

Transmission:

HW18709

12.68  8.46  6.26  4.64  3.38  2.50  1.85 1.37  1.00                  R11.62

Drive axle

Strengthened wide steel two-grade reducing and double                  tire axle

Front axle

Strengthened wide welded box stiff front shaft

Tire

14.00-20-20PR or 14.00R20

Service brake

Dual circle brake

Park brake

Spring energy air cut brake on front shaft and rear                  axle

Electric system

Single line 24V negative grounded

Fuel tanker

400L



  • Size:  62M3
  • Place of Origin:  China
  • Brand Name:  SINOTRUK
  • Model Number:  ZZ
  • Weight: 9000.000 kg




Model

ZZ5504N3640AJ

Dimension

8060x3000x3425mm

Dimension of box

5400x2800x1500mm(rectangular carrier)

Wheel base

3600mm 1400mm

Front/rear overhang

1500/1560mm

Front/rear track

2400/2200mm

Min. Ground clearance

305mm

Dead weight

15560kg

G.V.W

50000kg

Axle loading capacity

9650/40350kg

Cabin

HOVA CABIN, Dual hydraulic locks,hydraulically                  52°tilting to the front

Engine:

Model

WD 615.69

Power

247kw/2200rpm

Max. torque

1350Nm/1100~1600rpm

Air intake

Three air filtering, whirlwind pre-filtering, oil bath                  and air filtering

Clutch

FG420J Spiral spring

Transmission:

HW18709

12.68  8.46  6.26  4.64  3.38  2.50  1.85 1.37  1.00                  R11.62

Drive axle

Strengthened wide steel two-grade reducing and double                  tire axle

Front axle

Strengthened wide welded box stiff front shaft

Tire

14.00-20-20PR or 14.00R20

Service brake

Dual circle brake

Park brake

Spring energy air cut brake on front shaft and rear                  axle

Electric system

Single line 24V negative grounded

Fuel tanker

400L
