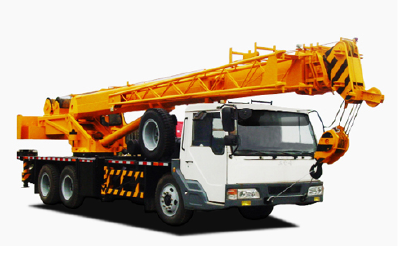

TAZ5193J 6x4 truck crane

TAZ5193J 6x4 truck crane

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 100 Units per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1994-12-29
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  SHAN DONG
  • Brand Name:  SINOTRUK
  • Model Number:  TAZ5193J
  • Weight: 1.000 kg

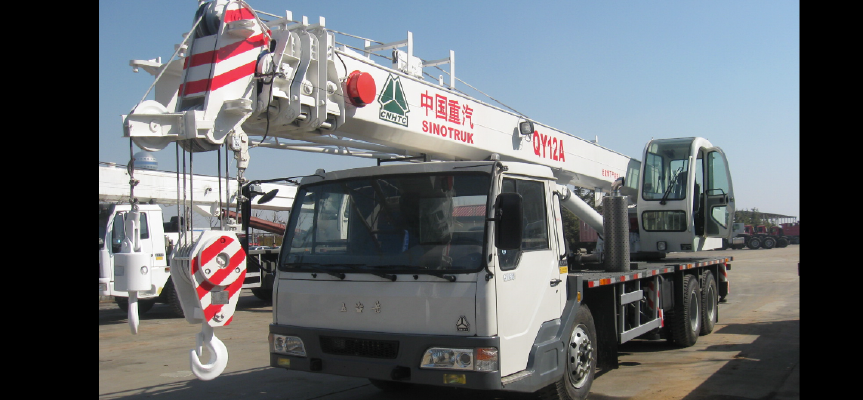

Mainfeatures of QY12Acrane

QY12Afull hydraulic rotary telescopic arm crane, adopting  WUYUE special crane chassis, has low center of gravity and good  stability. With four sections of main arm and one auxiliary jib, the crane has high lifting height and wide operating range. The arm, rotary table, movable outrigger, etc. are made of high strength steel, so this vehicle is light in weight, strong and durable. The hexagon arm can telescope synchronously, easy to operate.

Using double hoisting system to control the main and auxiliary lifting mechanism, this vehicle has large gear ratio, high efficiency and stable working performance.

The slewing mechanism is equipped with slewing buffer valve, which makes the rotary table slew and stop more smoothly.

Using H type outrigger with large span, and each outrigger can be adjusted separately, the vehicle has good stability.

Equipped with load moment limiter, height limiter, various safety valves and complete lighting, this vehicle is safe and      reliable.


  • Size:  1
  • Place of Origin:  SHAN DONG
  • Brand Name:  SINOTRUK
  • Model Number:  TAZ5193J
  • Weight: 1.000 kg


                 (ITEM)

UNIT

DATA

Parameter of the work

Max rated lifting capacity

t

12

Max lifting moment                  with min  boom length

kN.m

463

Max lifting moment                  with max boom length

kN.m

167

Max boom max                  lifting height

m

29.1

Max boom and Jib                  max lifting height

m

35.1

Parameter   of the weight

Gross weight

kg

19230

Front axle load

kg

5430

Rear axle load

kg

13800

Parameter   of the travel

Max travelling speed

km/h

75

Max gradeability

(%)

22

Min turning radius

m

22

Approach angle

°

17

Aagle of departure

°

11

Dimensions

Overall                  dimensions(L*W*H)

mm

12070*2494*3305

Outrigger                  longitudinal span

mm

4700

Outrigger                  Transversal Span

mm

4800

Chassis

Type


TAZ5193J

Diesel model


WP6.210(Euro   III)

Max power of engine

kw/rpm

155/2300

Max toroue of engine

N·m/rpm

750/1400--1600
