- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3257N3847B
- Weight: 16000.000 kg

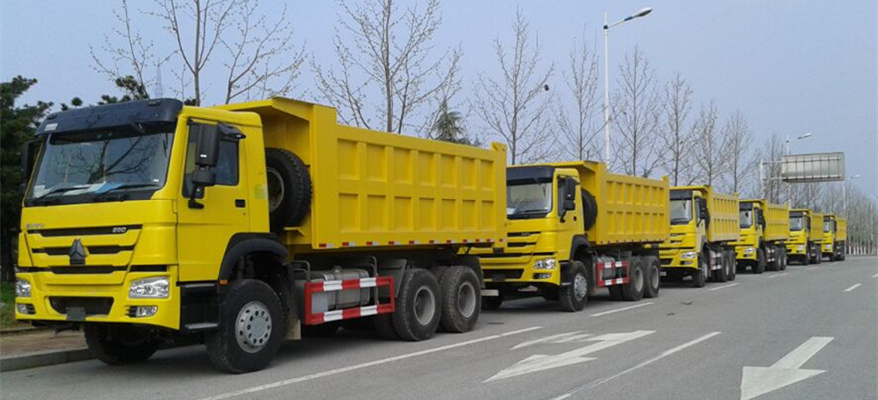

1, Howo tippers: Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2, Howo concrete mixers: Howo 6x4 mixer; Howo 8x4 mixer. including7m3,8m3,9m3,10m3,11m3 and 12m3,
3,Howo tracotrs: Howo 4x2 tractor; Howo 6x4 tractor
Engine power for the above heavy duty trucks is 266HP,290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia,Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.

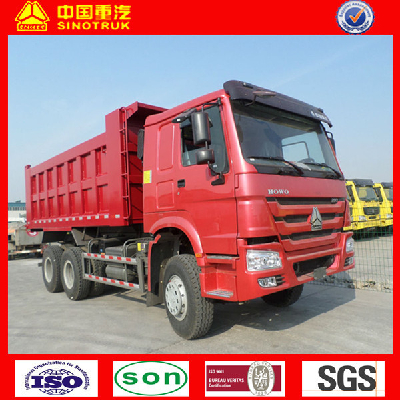

The Specification Of HOWO 6×4 Tipper ZZ3257N3847B Model 6x4 dump truck (around 20tons) Based on Steyr technology Cabin Four point s suspension Cabin with spring and air shock absorber, A/C, Adjustable steering, Sun cover, Safety belt, short cabin without sleeper Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. Model: WD615.47 STEYR technology(CNHTC) Engine power 371HP/273kW Displacement(L): 9.726liter (Euro 2 standard) Max torque: 1500NM@1100-1600rpm Bore/stoke: 126mm/130mm Fuel consumption 198g/kW.h Gear box CNHTC Max torque:1900NM Model: HW19710 Speed: 10speed, 2reverse Axle(front/rear) Front axle HF9 STEYR technology front steering axle Tandem HC16 STEYR technology double reduction hub reductor driving axle Clutch D430 diaphragm type clutch Brake Service brake: Dual lines air brake Parking brake: Spring-Power drum brake Engine brake: Engine exhaust brake(EVB) Steering ZF8098, driver sit at the Left hand side Electric Equipment Operating voltage: 24Vnegative grounded Starter: 24V,5.4KW Alternator 28V,758W Battery voltage 12V/135Ah Frame Strengthen steel frame, designed according to tough road condition. Tyre 10 1 spare tyre with rim 12.00R20 radial tyre Suspension system: Strengthen heavy duty Leaf spring type Front/Rear 10/12 Dump body: type of body : Inside size of Body(mm): 5400x2300x1500, 8x6mm(thickness of dump body),made of high intensity steel Lifting type: Middle lifter type hydraulic system Overall dimension(mm): 8214x2496x3450(Length x width x height) Wheelbase 3625 1350mm Track: Front/Rear 2022/1830 Approach/Departure angle 19/26 Front /Rear overhang 1500/1739 Max speed 75km/h Kerb weight: 12290kg
- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3257N3847B
- Weight: 16000.000 kg
The Specification Of HOWO 6×4 Tipper ZZ3257N3847B Model 6x4 dump truck (around 20tons) Based on Steyr technology Cabin Four point s suspension Cabin with spring and air shock absorber, A/C, Adjustable steering, Sun cover, Safety belt, short cabin without sleeper Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. Model: WD615.47 STEYR technology(CNHTC) Engine power 371HP/273kW Displacement(L): 9.726liter (Euro 2 standard) Max torque: 1500NM@1100-1600rpm Bore/stoke: 126mm/130mm Fuel consumption 198g/kW.h Gear box CNHTC Max torque:1900NM Model: HW19710 Speed: 10speed, 2reverse Axle(front/rear) Front axle HF9 STEYR technology front steering axle Tandem HC16 STEYR technology double reduction hub reductor driving axle Clutch D430 diaphragm type clutch Brake Service brake: Dual lines air brake Parking brake: Spring-Power drum brake Engine brake: Engine exhaust brake(EVB) Steering ZF8098, driver sit at the Left hand side Electric Equipment Operating voltage: 24Vnegative grounded Starter: 24V,5.4KW Alternator 28V,758W Battery voltage 12V/135Ah Frame Strengthen steel frame, designed according to tough road condition. Tyre 10 1 spare tyre with rim 12.00R20 radial tyre Suspension system: Strengthen heavy duty Leaf spring type Front/Rear 10/12 Dump body: type of body : Inside size of Body(mm): 5400x2300x1500, 8x6mm(thickness of dump body),made of high intensity steel Lifting type: Middle lifter type hydraulic system Overall dimension(mm): 8214x2496x3450(Length x width x height) Wheelbase 3625 1350mm Track: Front/Rear 2022/1830 Approach/Departure angle 19/26 Front /Rear overhang 1500/1739 Max speed 75km/h Kerb weight: 12290kg
