- Place of Origin: Jinan, China
- Brand Name: SINOTRUK
- Model Number: TAZ4413

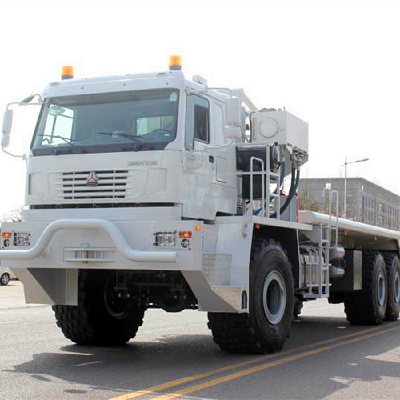

TAZ4413 Heavy Tractor
Main parameters and configurations | |||
Model | TAZ4413 | ||
Drive type | 6×6 | ||
Mass parameters | Total mass/Kerb mass（kg） | 41000/13000 | |
Rated vertical load capacity（kg） | 28000 | ||
traction capacity（kg） | 100000 | ||
Full-load bearing on various axle（kg） | Front axle | 9000 | |
Intermediate axle | 16000 | ||
Rear axle | 16000 | ||
Dimension parameters | Overall dimensions（mm） | 7720×2500×3266(full-loaded) | |
Wheel track（mm） | 1884/1873 | ||
Wheel base（mm） | 3600 1470 | ||
fifth wheel height（mm） | 1716 | ||
Minimum ground clearance（mm） | 412 | ||
Front/Rear turning radius（mm） | 1980/2300 | ||
Operation parameters | Maximum gradeability（%） | 27.7 | |
Minimum turning radius（m） | 10.5 | ||
Maximum speed (no-load/full-loaded) （km/h） | 76.5 | ||
Applicable | -20℃~60℃ | ||
Engine | Model | MC11.43-30 | |
Max.torque（N.m/r/min） | 2100/1000～1400 | ||
Power/rotate speed（KW/r/min） | 430HP（316kw）/1900 | ||
Model | Allison 4500 | ||
Velocity ratio | 4.70，2.21，1.53，1.00， 0.76，0.67，R: -5.55 | ||
Saddle | model | double pendulum | |
Rated vertical load capacity（T） | 36 | ||
Horizontal/Longitudinal oscillating range（°） | ±7/±15 | ||
king pin | 3 1/2” | ||
Winch | Model | HP100B | |
Max. tension（T） | 45 | ||
Cab | CNHTC cab | ||
Tires | 12.00R24 | ||
