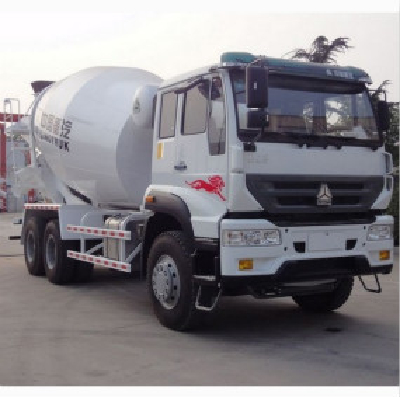

SINOTRUK HOWO 6x4 8m3 Mobile Concrete Mixer

SINOTRUK HOWO 6x4 8m3 Mobile Concrete Mixer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Any China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1994-12-29
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  87M3
  • Place of Origin:  China
  • Brand Name:  SINOTRUK
  • Model Number:  ZZ1257N3847C
  • Weight: 13100.000 kg

Carriage volume:

8m³

Dimension(Lx W xH)(unloaded)(mm)

9040×2496×3850

Approaching angle/Departure angle(°)

19/23

Overhang(front/rear) (mm)

1500/1870

Wheel base (mm)

3800 1350

Max speed(km/h)

75

Curb weight(kg)

13220

Engine
(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line                  with water cooling,turbocharged and intercooling,                  directly injection

Fuel type

Diesel

Power, max(kw/rpm)

247/2200

Emission

EURO Ⅱ

Fuel tanker capacity (L)

300

Transmission

Model

HW15710,10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8098

Front axle

HF9

Rear axle

HC16

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab(Single bed,A/C),all-steel forward                  control,55º hydraulically tillable to the front,2- arm                  windscreen wiper system with three speeds, laminated                  windscreen with casted-in radio aerial, hydraulically                  damped adjustable driver’s seat and rigid adjustable                  co-driver’s seat, with heating and ventilating system,                  outer sun visor, adjustable roof flap, with stereo                  radio/cassette recorder, safety belts and adjustable                  steering wheel, air horn, with 4-point support fully                  floating suspension and shock absorbers.


  • Size:  87M3
  • Place of Origin:  China
  • Brand Name:  SINOTRUK
  • Model Number:  ZZ1257N3847C
  • Weight: 13100.000 kg

Carriage volume:

8m³

Dimension(Lx W xH)(unloaded)(mm)

9040×2496×3850

Approaching angle/Departure angle(°)

19/23

Overhang(front/rear) (mm)

1500/1870

Wheel base (mm)

3800 1350

Max speed(km/h)

75

Curb weight(kg)

13220

Engine
(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line                  with water cooling,turbocharged and intercooling,                  directly injection

Fuel type

Diesel

Power, max(kw/rpm)

247/2200

Emission

EURO Ⅱ

Fuel tanker capacity (L)

300

Transmission

Model

HW15710,10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8098

Front axle

HF9

Rear axle

HC16

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab(Single bed,A/C),all-steel forward                  control,55º hydraulically tillable to the front,2- arm                  windscreen wiper system with three speeds, laminated                  windscreen with casted-in radio aerial, hydraulically                  damped adjustable driver’s seat and rigid adjustable                  co-driver’s seat, with heating and ventilating system,                  outer sun visor, adjustable roof flap, with stereo                  radio/cassette recorder, safety belts and adjustable                  steering wheel, air horn, with 4-point support fully                  floating suspension and shock absorbers.
