- Place of Origin: Jinan, China
- Brand Name: SINOTRUK
- Model Number: TAZ4922

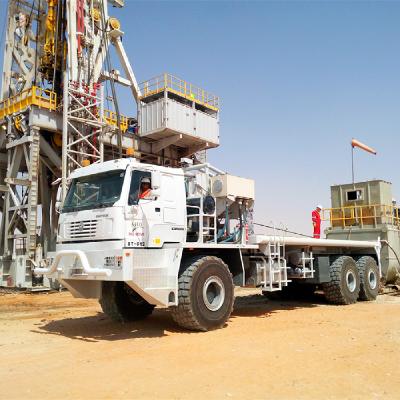

TAZ4922 Heavy Tractor
Main parameters and configuration | |||
Model | TAZ4922 | ||
Drive type | 6×6 | ||
Mass parameters | Total mass/Kerb mass（kg） | 92000/34000 | |
Rated vertical load capacity（T） | 58 | ||
traction capacity（T） | 180 | ||
Full-load bearing on various axle（kg） | Front axle | 22000 | |
Intermediate axle | 35000 | ||
Rear axle | 35000 | ||
Dimension parameters | Overall dimensions（mm） | 14057×3500×4150(full-loaded) | |
Wheel track（mm） | 2718/2718 | ||
Wheel base（mm） | 7800 2030 | ||
fifth wheel height（mm） | 2667 | ||
Minimum ground clearance（mm） | 430 | ||
Front/Rear turning radius（mm） | 6616/3042 | ||
Operation parameters | Maximum gradeability（%） | 45 | |
Minimum turning radius（m） | 25 | ||
Maximum speed (no-load/full-loaded) （km/h） | 80/30 | ||
Applicable | -20℃~60℃ | ||
Engine | Model | QSX15-C600（Euro Ⅱ） | |
Max.torque（N.m/r/min） | 2779/1400 | ||
Power/rotate speed（KW/r/min） | 600HP（447kw）/1900 | ||
Model | Allison M6620AR | ||
Velocity ratio | 4.00，2.68，2.01，1.35，1.00，0.67，R: -5.15 | ||
Saddle | model | single pendulum | |
Longitudinal oscillating range（°） | ±12 | ||
king pin | 3 1/2“ | ||
Winch | Model | HP100B | |
Max. tension（T） | 45 | ||
Cab | CNHTC cab | ||
Tires | 29.5R25(equipped with inflation/deflation system） | ||
