- Size: 52
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: AZ9400TJZ
- Weight: 7200.000 kg
CNHTC Taian WUYUE SPECIAL VEHICLE CO.,LIMITED. focus on development manufacture and market Howo trucks. Our main products areas are:
1, Howo tippers : Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2,Howo concrete mixers : Howo 6x4 mixer; Howo 8x4 mixer. including 7m3,8m3,9m3,10m3,11m3 and 12m3,
3,Howo tracotrs : Howo 4x2 tractor; Howo 6x4 tractor; HOWO A7 4*2 tractor; HOWO A7 6*4 tractor
4, Semi-trailer : flatbed container semi-trailer; Low Bed semi-trailer; Blade Trailer;
40’Platform Semi-trailer with Side Wall Panel; Side loader; Skeletal Containerized Semi-trailer etc..
5, Special Vehicle : Oilfield Workover Rig Chassis 4X4; Oilfield Workover Rig Chassis 6X6;
Oilfield Workover Rig Chassis 8X4 .
Engine power for the above heavy duty trucks is 266HP, 290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia, Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.

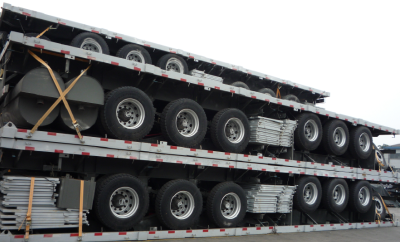

Flatbed container semi-trailer | |||
Weight | Tare Weight | 6 70 0kg | |
Loading Capacity | 60 000kg | ||
Specification | Dimensions | 12500×2480×1500 (as your need) | |
Wheelbase(mm) | 7280 +1310+1310 | ||
Axle | Number | Three | |
Payload | 13T capacity per axle | ||
Brand | FUWA /BPW Brand | ||
Suspension | Mechanical Steel spring Suspension | ||
Leaf spring 90x16mm 10 pcs per axle | |||
Tires | Tires | 12R22.5 x 13pcs | |
Rim | 9.0 x 13pcs | ||
King Pin | Size | 2.0 or 3.5inch bolts type or Welding type | |
Brand | JOST or China famous brand | ||
Support legs | Two-speed ,manual operation,28T loading capacity ,JOST brand | ||
Twist Locks | 12 no. of ISO twist lock for 1x20ft,2x20ft,1x40ft container | ||
Rachets and h ooks | 15 rachets one side and 1 5 hooks opposite | ||
Main beam | I shape, 500mm Height, Mild Alloy(Q345B) Top plate thickness 14mm, Bottom plate thickness 16mm Middle plate thickness 8mm Platform thickness 3mm checkered plate | ||
Brake System | Four double and two single chamber, T300 chamber, WABCO brake valve | ||
Electric sy stem | Electrical equipment 24 Volt, SAE 7 poles ; Two sets of rear light, turn light rear reflector, side light, side reflector etc. | ||
Additional | One standard tool box 1000x500x500mm | ||
Two spare wheel carrier | |||
Painting | sand blasting before painting; 2 coat of anticorrosive primer ; Color as per request | ||
- Size: 52
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: AZ9400TJZ
- Weight: 7200.000 kg
