- Size: 108CBM
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: SDZ9340TDP
- Weight: 10000.000 kg

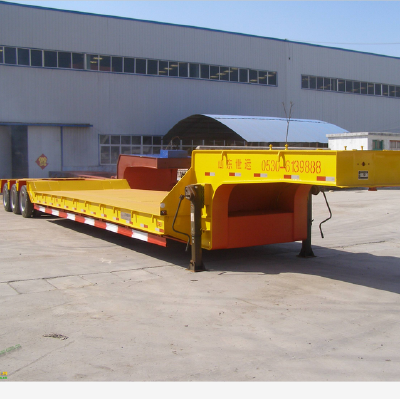

The Specification of 3 Axles low bed Semi-trailer
Tare Weight | About 8.5-13T |
Dimension | 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. |
Loading Capacity (T) | 30T-100T |
Axle | 13T/16T, FUWA /BPW Brand |
Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height:450mm-520mm,upper plate is 14mm-25mm, middle plate is 8mm-12mm,down plate is 16mm-25mm ; Material is Q345B Steel . |
Side beam | 16mm-25mm channel steel ( Material is Q235steel ). |
Ladder | Manual or Hydraulic type |
Gooseneck | For choose |
Brake chamber | WABCO RE 6 relay valve; T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks |
ABS | Optional |
Twist Locks | Four,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7ways (7 wire harness) |
Tool box | One piece, 1m×0.5m ×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
