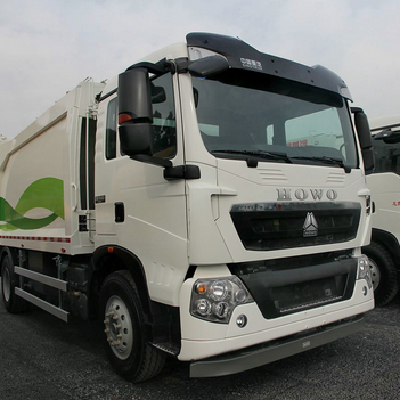

HOWO 16m3 Garbage Truck

HOWO 16m3 Garbage Truck

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 100 Units per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1994-12-29
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  SHAN DONG
  • Brand Name:  SINOTRUK
  • Model Number:  QDZ5161ZYSZH
  • Weight: 1.000 kg

Model

QDZ5161ZYSZH

Chassis Model

ZZ1167M4611W(EuroⅡ)
ZZ1167M4617C(EuroⅢ)


Overall Dimensions(L×W×H)(mm)

8765x2498x3290

Pressure                of Hydraulic System(MPa)

20

Kerb Mass(kg)

12150

Loading Mass(kg)

3720

Gross                Vehicle Weight (kg)

16000

Max.                Speed (kg/h)

90

Engine Model

WD615.87,290HP

Engine Output(KW/r/min)

193/2300,196/2300

Body                Volume ( m3)

16

Filler                Volume ( m3)

2.0

Cycle                Time of Filling (s)

≤25

Lifting                Time of Filler(s)

8-10

Time                of Discharging(s)

≤40

Front                / Rear Sewage Tank volume(L)

250 150

Max.Compression Force(kg)

>25000




  • Size:  1
  • Place of Origin:  SHAN DONG
  • Brand Name:  SINOTRUK
  • Model Number:  QDZ5161ZYSZH
  • Weight: 1.000 kg

Model

QDZ5161ZYSZH

Chassis Model

ZZ1167M4611W(EuroⅡ)
ZZ1167M4617C(EuroⅢ)


Overall Dimensions(L×W×H)(mm)

8765x2498x3290

Pressure                of Hydraulic System(MPa)

20

Kerb Mass(kg)

12150

Loading Mass(kg)

3720

Gross                Vehicle Weight (kg)

16000

Max.                Speed (kg/h)

90

Engine Model

WD615.87,290HP

Engine Output(KW/r/min)

193/2300,196/2300

Body                Volume ( m3)

16

Filler                Volume ( m3)

2.0

Cycle                Time of Filling (s)

≤25

Lifting                Time of Filler(s)

8-10

Time                of Discharging(s)

≤40

Front                / Rear Sewage Tank volume(L)

250 150

Max.Compression Force(kg)

>25000
