- Size: 57M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ4257V3247N1B
- Weight: 9000.000 kg
1, Howo tippers: Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2, Howo concrete mixers: Howo 6x4 mixer; Howo 8x4 mixer. including7m3,8m3,9m3,10m3,11m3 and 12m3,
3, Howo tracotrs: Howo 4x2 tractor; Howo 6x4 tractor
Engine power for the above heavy duty trucks is 266HP,290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia,Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.

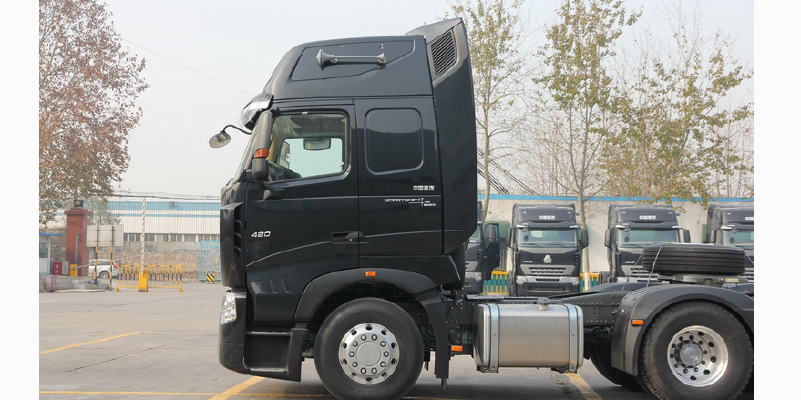

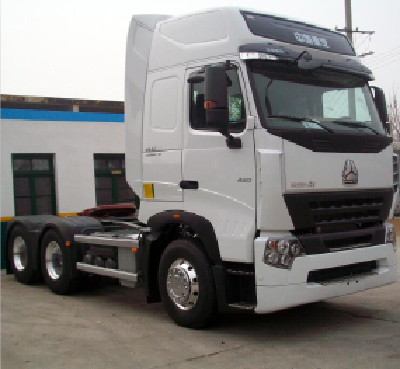

The Specification of HOWO A7 6×4 Tractor ZZ4257V3247N1B
| Model | ZZ4257M3241W | ZZ4257N3241W | ZZ4257S3241W | ZZ4257V3241W | ||
| Product code | 4257602 | 4257603 | 4257604 | 4257605 | ||
| Engine | Model | WD615.87 | WD615.69 | WD615.47 | D12.42 | |
| Horsepower | 290 | 336 | 371 | 420 | ||
Maximum output Kw/r/min | 213/2200 | 247/2200 | 273/2200 | 309/2000 | ||
Maximum torque N.m/r/min | 1160/1100-1600 | 1350/1300-1600 | 1460/1300-1600 | 1820/1100-1500 | ||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter- cooled, direct injection | |||||
| Bore x Stroke | 126x130mm | 126x155 mm | ||||
| Valve | 2 | 4 | ||||
| Displacement | 9.726L | 11.596L | ||||
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||||
Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery) | ||||||
| Cab | SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor,stereo radio/cassette recorder,left driving, air conditioner, Option: right driving; color; Wind guide cover | |||||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||||
| Transmission | SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2) | |||||
| Front Axle | SINOTRUK HF7 Front Axle,new 7-ton front axles of equipped with drum brakes Option: disc brake | |||||
| Steering | German ZF8098 Steering Gear Box ,hydraulic steering with power assistance, Ratio:22.2-26.2 | |||||
Rear Axles | ST16 Double Reduction Drive Axle, Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio: 3.93,4.42 or 4.8;strengthened design, loading capacity and reliability have been increased greatly. HW 1697 Single Reduction Drive Axle, ratio: 4.22 or 3.73 The basic configuration of HOWO series on-road vehicle is especially suitable for transportation on express way and road above class II. | |||||
Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake | |||||
Wheels & Tyres | Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire Option:12.00R20 radial tyre ;295/80R22.5 tubeless;12R22.5 tubeless; 315/80R22.5 tubeless | |||||
| Electrics | Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries | |||||
| Oil Tank | D type-400L Aluminum alloy fuel tank | |||||
| Fifth wheel | 50# (2 inch) Option:90#(3.5 inch) | |||||
Other Optional | Vertical Muffler ;ABS ;Automatic Break Clearance Adjusting Arm ; Traveling Data Recorder ;Under Starting/Stopping Device ;Metal Pipeline ;Engine Protective Board | |||||
| Delivery date | Within 30days after receipt advance | |||||
Dimensions in mm | Overall length x Overall width xOverall height 6800x2496x2958 Wheel base 3200 1400 | |||||
Weight in kg | Kerb weight 9180 Gross vehicle weight 25000 Front axle loading capacity 7000 Rear axles loading capacity 2x16000 | |||||
| Performance | Maximum drving speed (km/h) 102 Fuel consumption (1/100 km) 35 | |||||
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |||||
