- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3257N3847B
- Weight: 16000.000 kg
SINOTRUK WUYUE VEHICLE CO.,LIMITED. focus on development manufacture and market Howo trucks. Our main products areas are:
1, Howo tippers: Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2,Howo concrete mixers: Howo 6x4 mixer; Howo 8x4 mixer. including 7m3,8m3,9m3,10m3,11m3 and 12m3,
3,Howo tracotrs: Howo 4x2 tractor; Howo 6x4 tractor
Engine power for the above heavy duty trucs is 266HP, 290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia, Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.

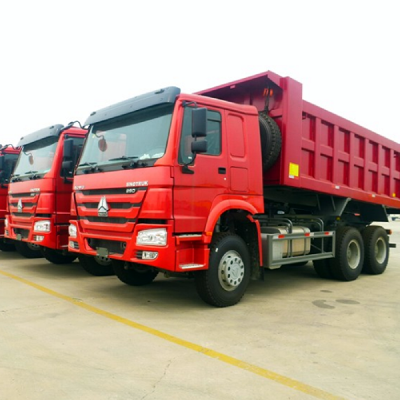

SINOTRUK HOWO 6x4 Dump Truck – 17.38 CBM | |
Chassis Model | ZZ3257N3647C |
Driving Type | Left Hand Driving (Right Hand Driving is optional) |
Production Year | 2016. New truck. |
Cabin | HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 2 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
Transmission | HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
Front Axle | HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Tires | 12.00R20, radial tires with one spare tire. Optional: 315/80R22.5 tubeless tires. |
Fuel Tank | 300 L |
Cargo Body | 5400*2300*1400 mm, 17.38 CBM, Floor 8 mm and side 6 mm, Middle lifting system |
Overall Dimension | 8500*2550*3500 mm |
- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3257N3847B
- Weight: 16000.000 kg
SINOTRUK HOWO 6x4 Dump Truck – 17.38 CBM | |
Chassis Model | ZZ3257N3647C |
Driving Type | Left Hand Driving (Right Hand Driving is optional) |
Production Year | 2016. New truck. |
Cabin | HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 2 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
Transmission | HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
Front Axle | HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Tires | 12.00R20, radial tires with one spare tire. Optional: 315/80R22.5 tubeless tires. |
Fuel Tank | 300 L |
Cargo Body | 5400*2300*1400 mm, 17.38 CBM, Floor 8 mm and side 6 mm, Middle lifting system |
Overall Dimension | 8500*2550*3500 mm |
