- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3257N3847B
- Weight: 16000.000 kg

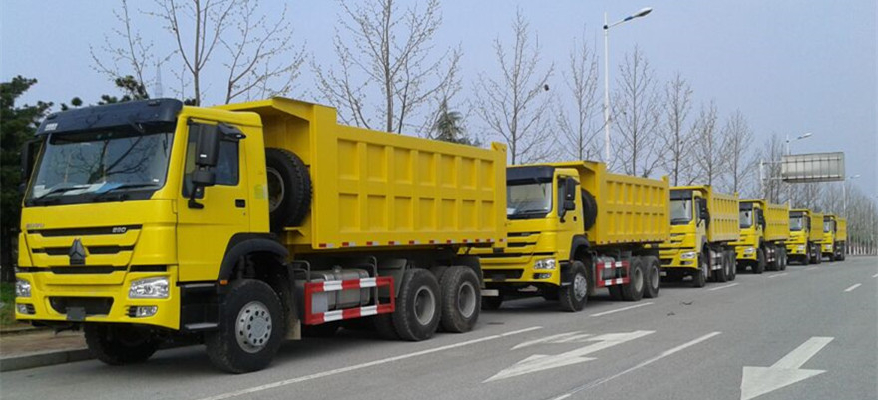

1, Howo tippers: Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2, Howo concrete mixers: Howo 6x4 mixer; Howo 8x4 mixer. including7m3,8m3,9m3,10m3,11m3 and 12m3,
3, Howo tracotrs: Howo 4x2 tractor; Howo 6x4 tractor
Engine power for the above heavy duty trucks is 266HP,290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia,Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.
- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: ZZ3257N3847B
- Weight: 16000.000 kg

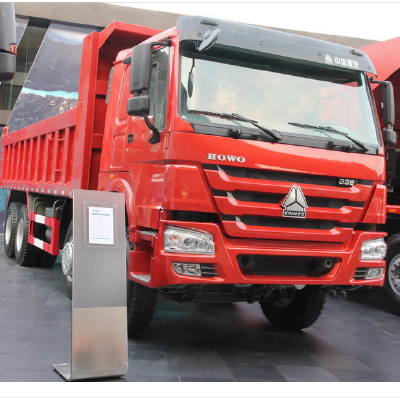

The Specification Of HOWO 6×4 Tipper ZZ3257N3847B
Model | 6x4 dump truck (around 20tons) Based on Steyr technology | ||
Cabin | Four point s suspension Cabin with spring and air shock absorber, A/C, Adjustable steering, Sun cover, Safety belt, short cabin without sleeper | ||
Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. | ||
Model: | WD615.47 | STEYR technology(CNHTC) | |
Engine power | 371HP/273kW | ||
Displacement(L): | 9.726liter (Euro 2 standard) | ||
Max torque: | 1500NM@1100-1600rpm | ||
Bore/stoke: | 126mm/130mm | ||
Fuel consumption | 198g/kW.h | ||
Gear box | CNHTC | Max torque:1900NM | |
Model: | HW19710 | ||
Speed: | 10speed, 2reverse | ||
Axle(front/rear) | |||
Front axle | HF9 STEYR technology front steering axle | ||
Tandem | HC16 STEYR technology double reduction hub reductor driving axle | ||
Clutch | D430 diaphragm type clutch | ||
Brake | Service brake: Dual lines air brake | ||
Parking brake: Spring-Power drum brake | |||
Engine brake: Engine exhaust brake(EVB) | |||
Steering | ZF8098, driver sit at the Left hand side | ||
Electric Equipment | |||
Operating voltage: | 24Vnegative grounded | ||
Starter: | 24V,5.4KW | ||
Alternator | 28V,758W | ||
Battery voltage | 12V/135Ah | ||
Frame | Strengthen steel frame, designed according to tough road condition. | ||
Tyre | 10 1 spare tyre with rim | ||
12.00R20 radial tyre | |||
Suspension system: Strengthen heavy duty Leaf spring type | |||
Front/Rear | 10/12 | ||
Dump body: type of body : | |||
Inside size of Body(mm): 5400x2300x1500, 8x6mm(thickness of dump body),made of high intensity steel | |||
Lifting type: Middle lifter type hydraulic system | |||
Overall dimension(mm): 8214x2496x3450(Length x width x height) | |||
Wheelbase | 3625 1350mm | ||
Track: | |||
Front/Rear | 2022/1830 | ||
Approach/Departure angle | 19/26 | ||
Front /Rear overhang | 1500/1739 | ||
Max speed | 75km/h | ||
Kerb weight: | 12290kg | ||
