- Size: 108CBM
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: SDZ9340TDP
- Weight: 10000.000 kg
CNHTC Taian WUYUE SPECIAL VEHICLE CO.,LIMITED. focus on development manufacture and market Howo trucks. Our main products areas are:
1, Howo tippers : Howo 4x2 tipper; Howo 6x4 tipper; Howo 8x4tipper.
2,Howo concrete mixers : Howo 6x4 mixer; Howo 8x4 mixer. including 7m3,8m3,9m3,10m3,11m3 and 12m3,
3,Howo tracotrs : Howo 4x2 tractor; Howo 6x4 tractor; HOWO A7 4*2 tractor; HOWO A7 6*4 tractor
4, Semi-trailer : flatbed container semi-trailer; Low Bed semi-trailer; Blade Trailer;
40’Platform Semi-trailer with Side Wall Panel; Side loader; Skeletal Containerized Semi-trailer etc..
5, Special Vehicle : Oilfield Workover Rig Chassis 4X4; Oilfield Workover Rig Chassis 6X6;
Oilfield Workover Rig Chassis 8X4 .
Engine power for the above heavy duty trucks is 266HP, 290HP, 336HP,371HPand 420HP.
We markets Howo trucks in more than 50 countries and districts all over the world, includes Russia, Ukraine, Iran, Indonesia, Vietnam, Saudi Arabia, Algeria, Nigeria, Sudan, Angora,Turkey, Brazil, Peru,Cuba, etc.

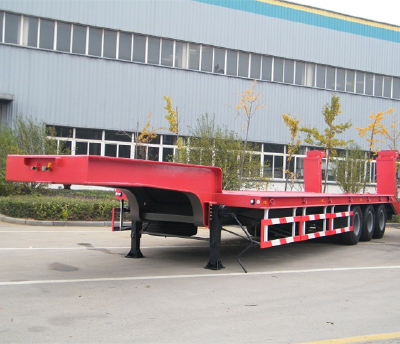

The Specification of 3 Axles low bed Semi-trailer
Tare Weight About 8.5-13T Dimension 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. Loading Capacity (T) 30T-100T Axle 13 T/16T, FUWA /BPW Brand Rim 6.5-20/7.5-20/8.00-20/8.5-20 Tire 8.25R20/10.00R20/11.00R20/12.00R20 Suspension Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) Spring leaf 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 King pin JOST brand 2.0 or 3.5inch bolts type or Welding type Support leg JOST brand D200T or China brand 28Tons (Double speed) Main beam Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . Side beam 16mm -25mm channel steel ( Material is Q235steel ). Ladder Manual or Hydraulic type Gooseneck For choose Brake chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber ( TKL brand ) ; Two pieces of 45L air tanks ABS Optional Twist Locks Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) Valve WABCO valve Light LED light Voltage 24V Receptacle 7 ways (7 wire harness) Tool box One piece, 1m × 0.5m × 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint Shipping Terms: By bulk cargo carrier, RORO or 40HQ container.
- Size: 108CBM
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: SDZ9340TDP
- Weight: 10000.000 kg
