- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: TAZ5303JA
- Weight: 16000.000 kg

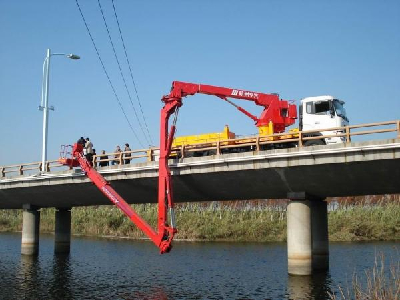

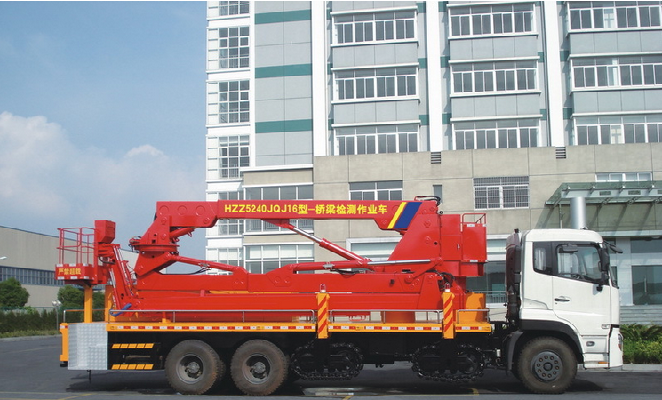

6x4 Bridge inspection truck
Specification:
Chassia Model: TAZ5303JA
Engine: WD615.93E
Overall Dimensions: L11880mmxW2495mmxH3870mm
Axle-load Distribution with Full Load:9000/22740kg(Twinaxle)
Platform Working Length: 18/16m
Platform Max. Lowering Depth: 7m
Platform Min. Lowering Depth: 1.85m
Platform width:1.2m
Platform Rotating Range: 180°
Min. Unfolding Space (H x W): 10x11.5m
Height Across Guardrail: 2m
Width Across Sidewalk: 1.45--2.5m
Platform Far End Max. Load:250 kg
Discharge Capacity of Double Hydraulic Pump: 32/16ml/r
Self-running Speed: 0-10m/min
Working Device Unfolding Time:≤8min
Working Device Folding Time: ≤8min
Max. Speed: 75km/h
NOTE:
1. All the details not mentioned above should be conformity with Chinese standard.
2. These specifications are given as information. SINOTRUCKTRAILER have the right to
change them without previous notice.
- Size: 75M3
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: TAZ5303JA
- Weight: 16000.000 kg
